10 Tips For Concrete Patio Extensions In San Antonio

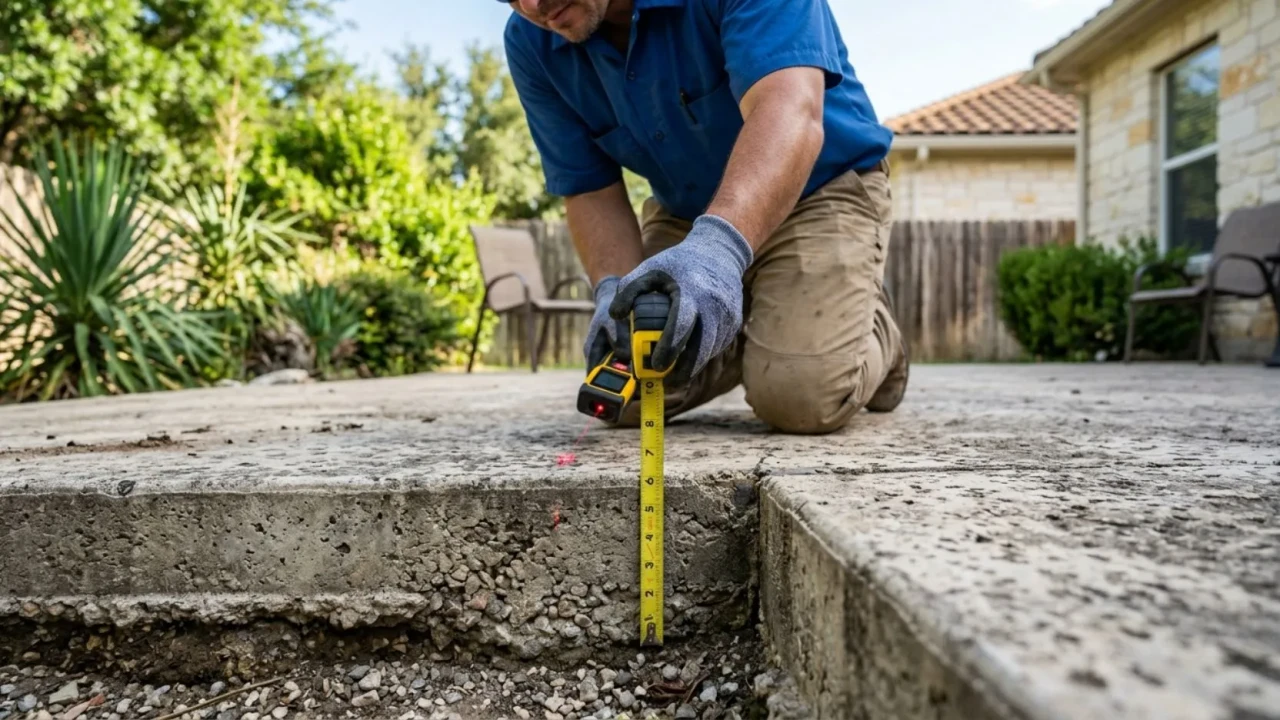

Every concrete patio extension project starts with one measurement that most homeowners forget to take: the thickness of the existing slab. Your new pour needs to match it within a quarter inch at the joint, or you will have a permanent trip hazard between old and new concrete that no finish treatment can disguise.

The easiest way to measure is at the exposed edge of the existing slab, such as a step edge or the perimeter where the concrete meets the yard. Use a tape measure or a ruler and record the number. In San Antonio, residential patios poured before 2010 are frequently 3.5 inches thick. Slabs poured after 2015 tend to be 4 inches as that specification became standard practice. Your extension should match or slightly exceed that thickness, never come in below it.

Older slabs (pre-2010): Often 3 to 3.5 inches thick Standard modern spec: 4 inches minimum Mismatch tolerance: Quarter inch maximum at the joint If unsure: Core drill a small hole for an exact measurement

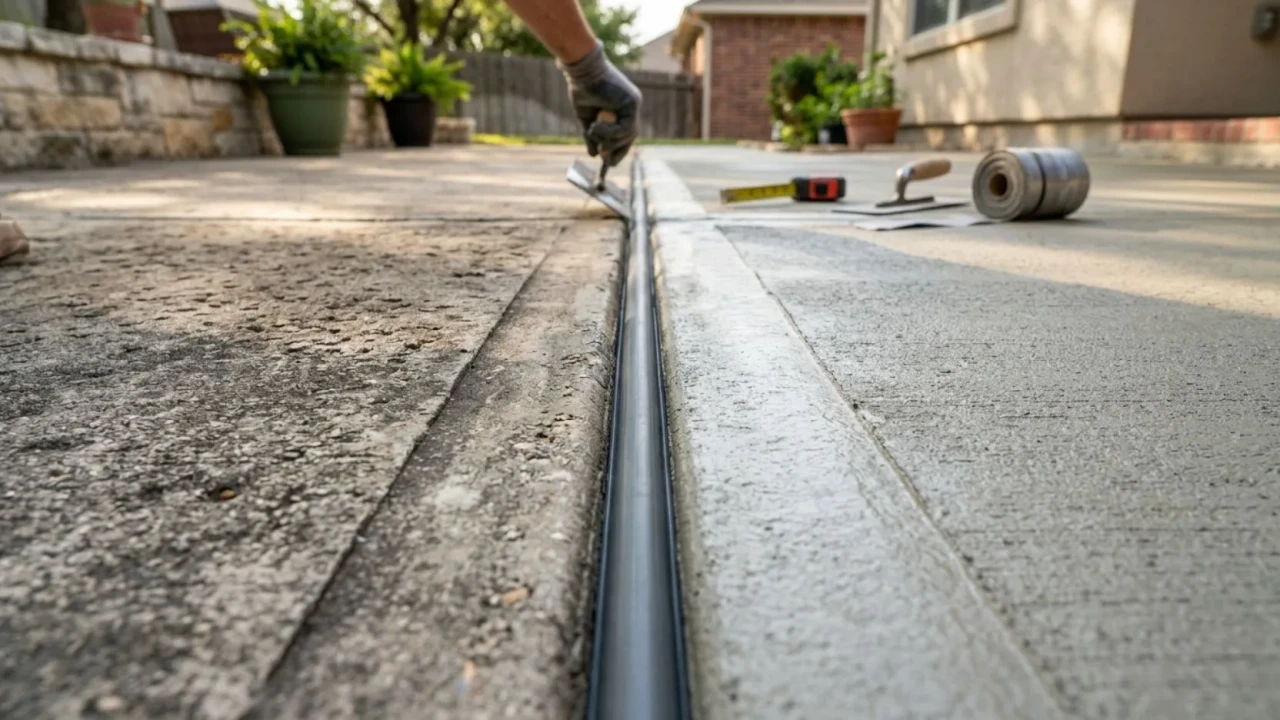

This is the most structurally critical tip in the entire list. An expansion joint between your existing slab and the new extension is not optional, it is the reason both slabs stay intact over time. Old concrete has already gone through years of thermal expansion and soil movement cycles. New concrete will go through its own curing shrinkage and seasonal movement. Without a joint separating them, one will crack the other within a few years, especially in Bexar County’s clay-heavy soil that shifts significantly between wet winters and dry summers.

The joint is typically formed using a half-inch compressible foam backer rod or a fiber expansion joint material placed against the existing slab edge before the new concrete is poured. This creates a permanent, flexible gap between the two slabs that allows each to move independently without transmitting stress to the other. The joint is then finished with a flexible polyurethane sealant that keeps water out while maintaining flexibility.

Joint material: Half-inch closed-cell foam backer rod or fiber board Joint width: Half inch minimum between old and new slab Sealant: Self-leveling polyurethane or silicone rated for concrete Resealing: Inspect annually; reseal every 3 to 5 years as needed

San Antonio sits on some of the most expansive clay soil in Texas. Vertisol clay absorbs water and swells during wet months, then contracts and cracks during dry periods. Without a buffer between that moving clay and your concrete slab, the slab moves with it. That is how patios crack, settle unevenly, and develop the raised edge lips that become trip hazards within five years of installation.

The standard subbase specification for a patio extension in Bexar County is a minimum of 4 inches of compacted crushed limestone base material. Crushed limestone is the correct choice in this region because it compacts tightly, drains well, and resists the moisture absorption that causes clay soils to heave. The base must be compacted with a plate compactor, not just spread and hand-tamped, to achieve the density needed to stabilize the slab above it.

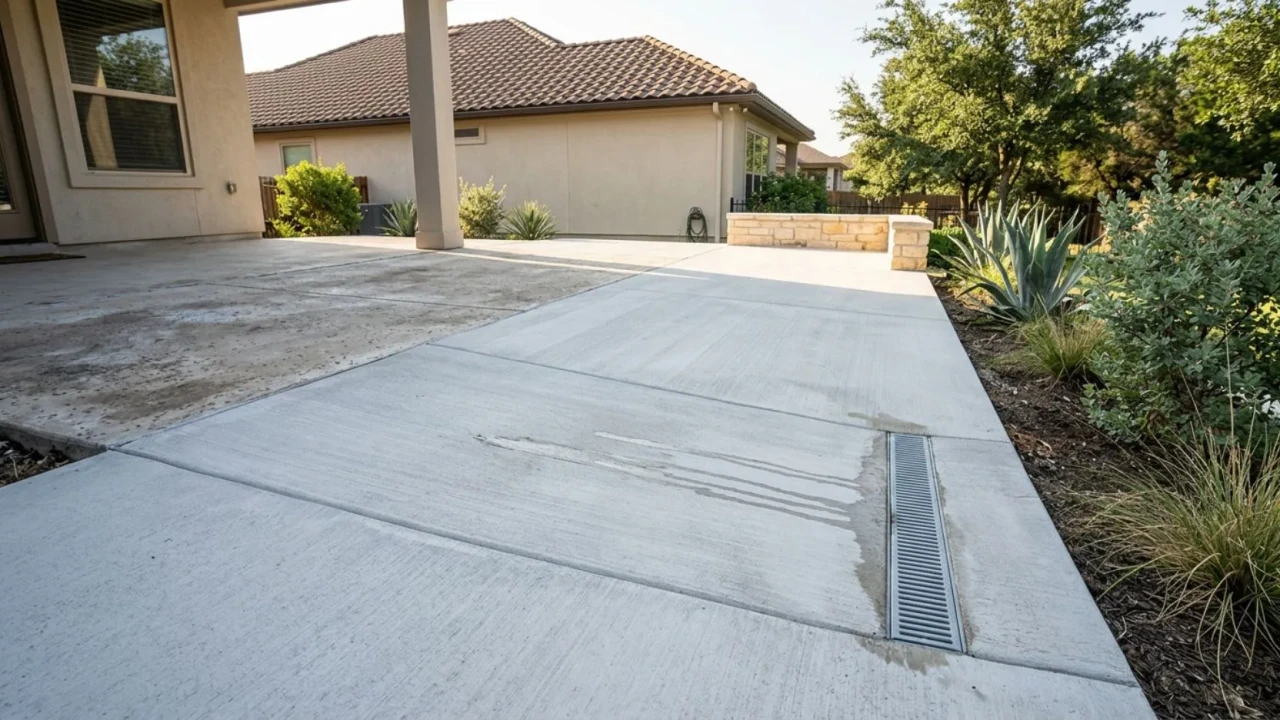

Drainage is the detail that distinguishes a patio extension that ages well from one that develops problems within a few years. Every concrete surface adjacent to a house must slope away from the foundation at a minimum of one-eighth inch per foot. This is not a style preference it is a structural requirement for protecting your home’s foundation from water intrusion.

The complication with patio extensions is that the existing slab already has an established slope. Your extension must continue that slope in the same direction. If the existing patio drains to the left, the extension must also drain to the left at the same or greater pitch. Changing drainage direction between old and new concrete creates a low spot at the joint where water will pool, penetrate the gap, and accelerate deterioration of both slabs from below.

Minimum slope: 1/8 inch per foot away from the house Ideal slope: 1/4 inch per foot for reliable drainage in heavy rain Rule: Extension slope must continue the direction of the existing slab Red flag: Low spot or flat section at the joint between old and new concrete

One of the most realistic things a contractor can tell a homeowner about a patio extension is this: a perfect color match between old and new concrete is not achievable. Concrete weathers, oxidizes, and accumulates staining over years of outdoor exposure. Fresh concrete has a bright, uniform appearance that will look noticeably different from even a 3-year-old slab for the first 12 to 18 months. After that period, the new concrete will weather toward a closer match on its own.

The two strategies that handle this well are finish matching for a close visual result, or committing to a full decorative upgrade across both old and new slabs to create a unified appearance from the start.

Wire mesh is the standard reinforcement for small, low-stress residential patios in many parts of the country. In San Antonio, the expansive clay soil conditions change that calculus for patio extensions specifically. When a new extension slab is cantilevering beyond the edge of the existing slab and sitting over native soil that has been disturbed during excavation, rebar provides significantly better resistance to the bending forces that cause slabs to crack along their unsupported edges.

The placement of the reinforcement matters as much as the type. Rebar sitting on the ground at the bottom of the slab provides almost no structural benefit it must be elevated to mid-slab height using plastic rebar chairs or dobies so that the concrete encases it at the correct depth. A contractor who does not use chairs or some form of support for the rebar is installing reinforcement that will not perform as intended.

The expansion joint between old and new concrete handles movement between the two slabs. But the new extension slab itself also needs control joints within it to manage the cracking that naturally occurs as fresh concrete shrinks during the curing process. Without control joints, the slab will crack on its own and it will crack wherever it chooses, which is rarely a straight line.

Control joints are scored lines cut into the surface of the fresh concrete that create planned weak points where the slab can crack in a controlled, straight line at the joint rather than randomly across the surface. They should be spaced at no more than 10 feet in any direction and should create roughly square panels. A 20-foot-wide extension would need a control joint at the 10-foot mark running the full width of the slab.

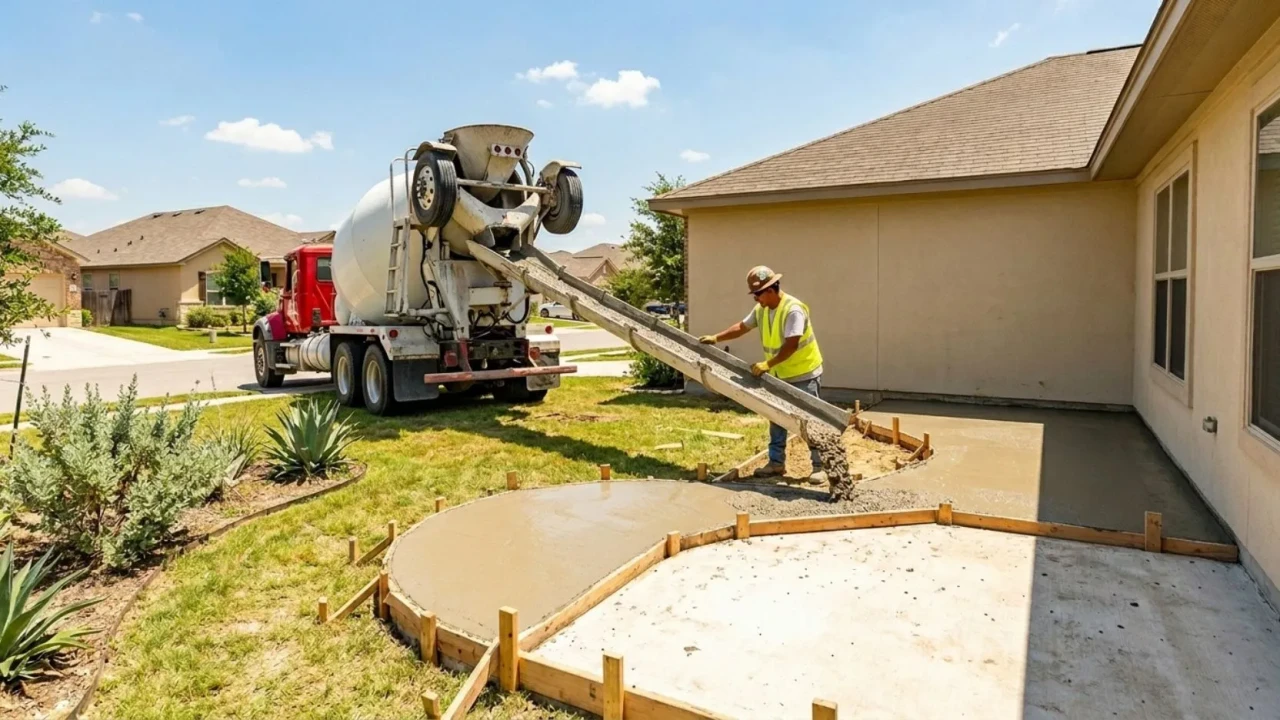

The chemistry of concrete curing is temperature-sensitive. When surface temperatures exceed 90 degrees Fahrenheit, fresh concrete begins losing moisture through evaporation faster than the hydration reaction can use it. The result is a slab that reaches initial set too quickly, potentially with surface cracking from plastic shrinkage and a final compressive strength that is lower than a slab poured under controlled conditions. In San Antonio, this scenario is common from June through early September when afternoon slab surface temperatures can exceed 110 degrees Fahrenheit in direct sun.

The preferred window for concrete patio extensions in San Antonio is October through April. Fall and winter pours benefit from moderate temperatures, slower curing that produces a stronger slab, and lower contractor demand that often means better pricing and more contractor attention on your job. If your project is time-sensitive and must happen in summer, insist on an early morning pour start (before 8 a.m.) and confirm that your contractor will apply a curing compound or wet-curing method immediately after finishing.

Best months: October through April for patio pours in San Antonio Summer pour rule: Start before 8 a.m., finish before peak afternoon heat Curing method: Wet curing or liquid curing compound required for summer pours Bonus: Fall and winter often mean lower contractor pricing due to reduced demand

Patio extension projects attract low-ball quotes from contractors who leave out essential components and then charge for them as add-ons once work has begun. The most commonly omitted items are subbase preparation, rebar, curing, and haul-away of excavated material. A quote that reads “concrete patio extension, 200 sqft” with a single price gives you no basis for comparison and no protection if the contractor skips the steps that protect your investment.

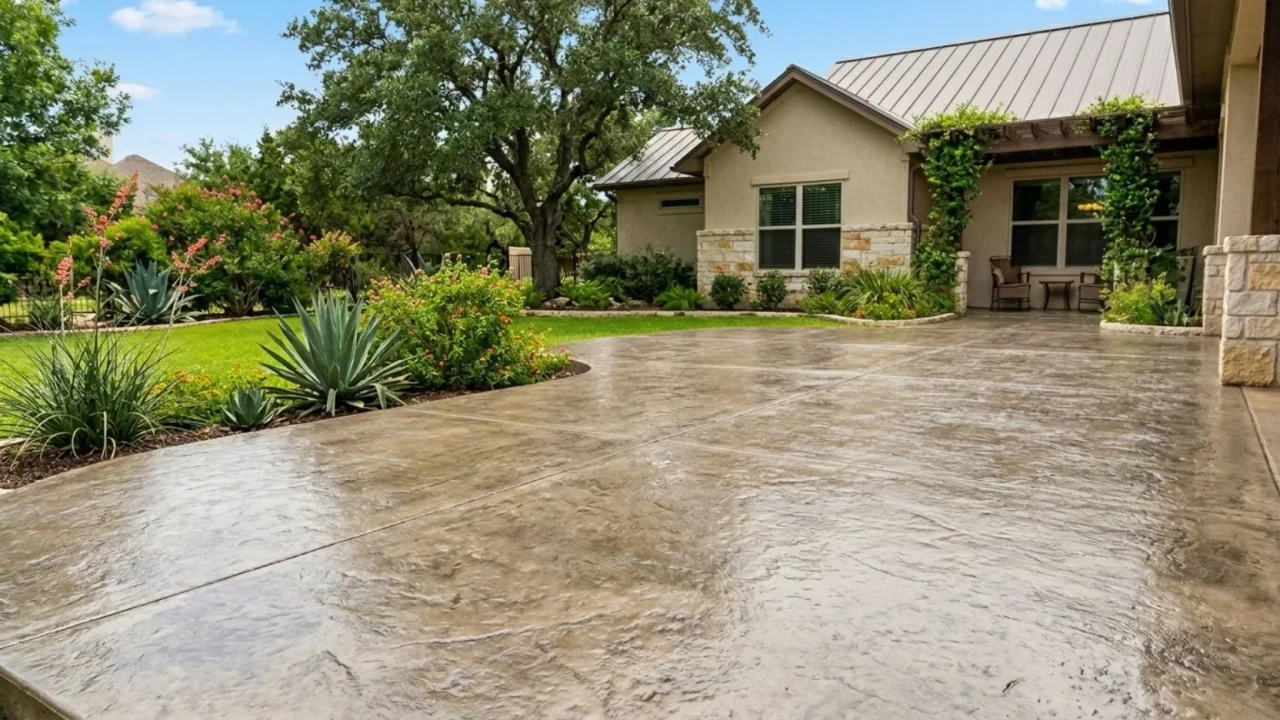

After the extension has reached full cure at 28 days, sealing both the new and existing patio surfaces together is one of the most practical ways to unify their appearance and protect both slabs simultaneously. A quality penetrating or film-forming sealer applied across both surfaces reduces the visual contrast between old and new concrete, protects against oil and water penetration, and extends the life of both slabs going forward.

In San Antonio’s climate, a sealed concrete surface also handles thermal cycling significantly better than an unsealed one. UV exposure from the intense Texas sun degrades unprotected concrete surface paste over time, leading to dusting, surface erosion, and increased staining from organic material. A quality sealer applied at 28 days and reapplied every 2 to 3 years adds a meaningful amount to the service life of any concrete slab.

First seal timing: 28 to 30 days after extension pour, once fully cured Seal both slabs: Apply uniformly across old and new concrete for visual unity Resealing interval: Every 2 to 3 years in San Antonio’s UV and heat exposure Sealer type: Penetrating sealer for natural look; film-forming for enhanced sheen
